Mean Well GSM12E12-P1J
Article number:
GSM12E12-P1J
Article GTIN:
4711287470498
Downloads

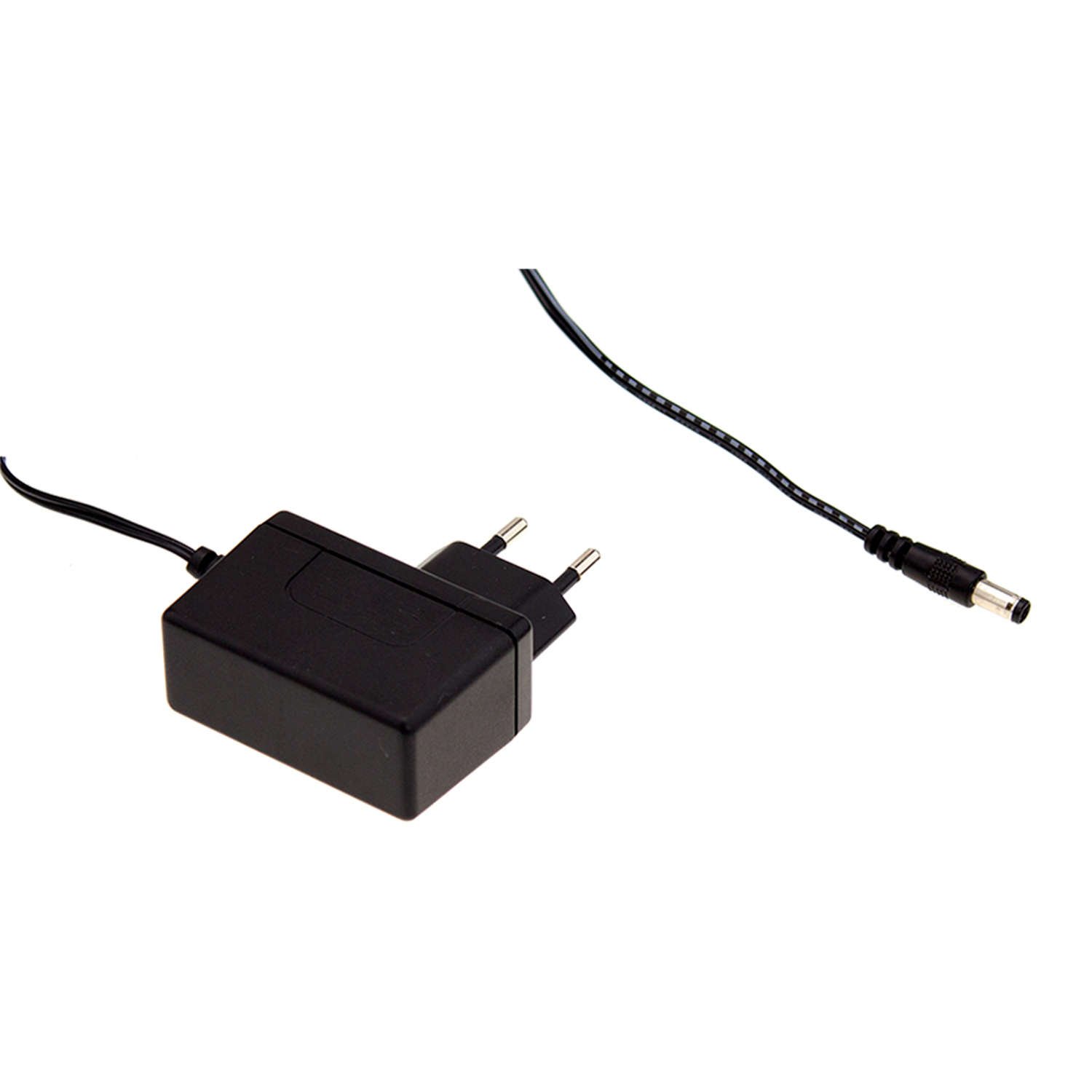

AC-DC Medical wall mount single output adaptor; Output 12Vdc at 1A with P1J tuning fork plug OD 5.5mm; Euro 2 pin plug; EN60601 2xMOPP
Properties
- Series: GSM12E
- Brand: Mean Well
- Dimensions LxWxH (mm): 62.2x27.4x39.7 mm
- Warranty: 36 Months Bring-In
- Gross weight: 100
- Type: AC-DC
- Form factor: Adapter
- Mounting method: Wall mount
- Min. output voltages (V): 12
- Max. output voltage (V): 12
- Number of output voltages: 1
- Max output power (W): 12
- Input voltage (V): 80 - 264
- Min. input voltage: 80
- Max. input voltage (V): 264
- Max. output current (A): 1
- Number of output currents: 1
- IP rating: IP22
- LED driver: No
- Dimming technologies: No Dimming
- Control signals: No control signals
- Carbon footprint (kgCO2e/pcs): 1.27
