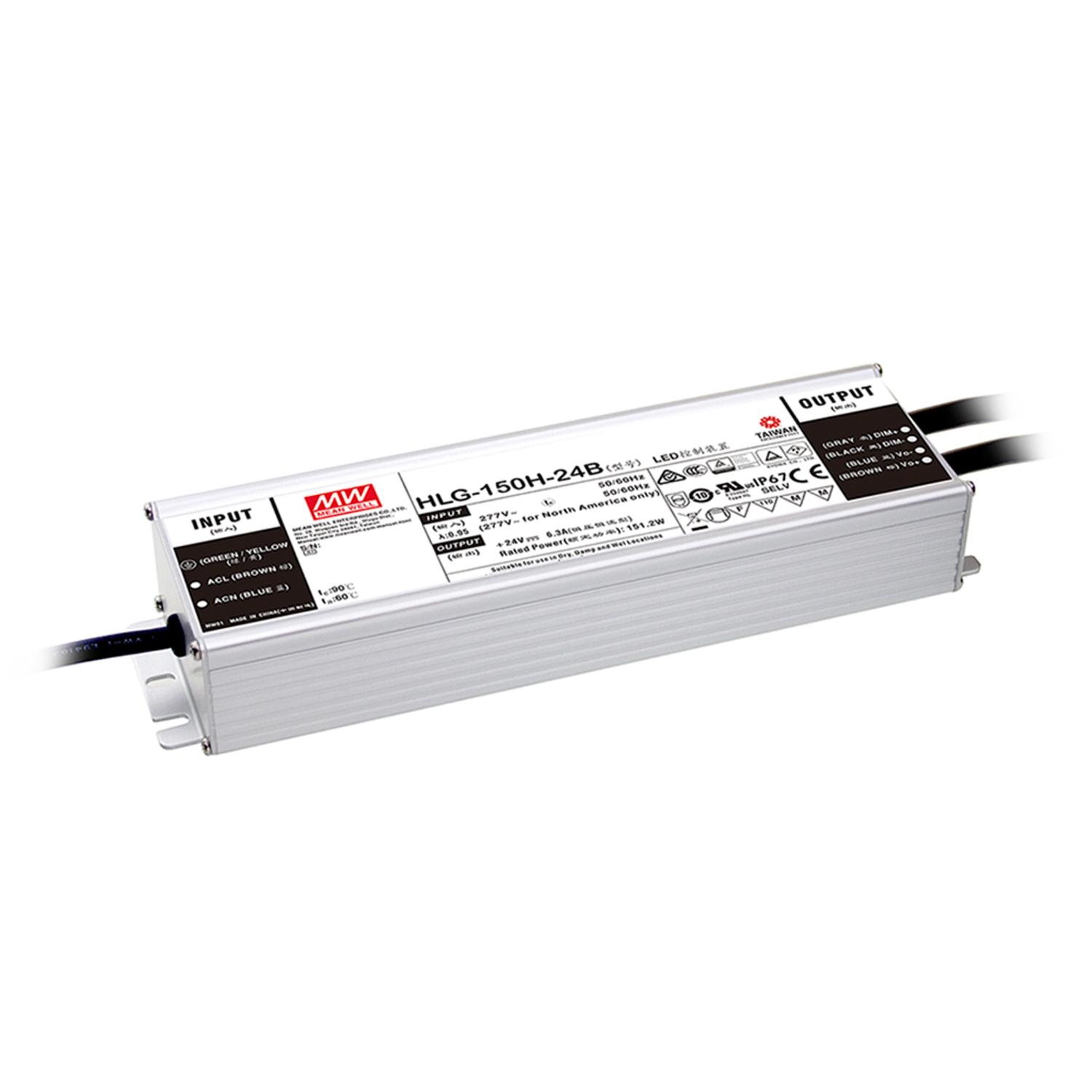

Mean Well HLG-150H-24B
Article number:
HLG-150H-24B
Article GTIN:
4711287449791
Downloads
AC-DC Single output LED Driver Mix Mode (CV+CC) with built-in PFC; Output 24Vdc at 6.3A; IP67; Cable output; Dimming with 1-10V PWM resistance
Properties
- Series: HLG-150H
- Brand: Mean Well
- Dimensions LxWxH (mm): 294x98x50 mm
- Warranty: 84 Months Bring-In
- Gross weight: 1090
- Type: AC-DC
- Form factor: Enclosed
- Mounting method: Chasis mount
- Min. output voltages (V): 24
- Max. output voltage (V): 24
- Number of output voltages: 1
- Max output power (W): 150
- Input voltage (V): 90 - 305
- Min. input voltage: 90
- Max. input voltage (V): 305
- Max. output current (A): 6.3
- Number of output currents: 1
- IP rating: IP67
- LED driver: Yes
- Dimming technologies: 1-10V, PWM, Resistance
- Control signals: No control signals
- Carbon footprint (kgCO2e/pcs): 13.54
