MEAN WELL introduces NTN-5K Series - News
5KW Off-Grid Industrial Grade 2-in-1 Charging Inverter

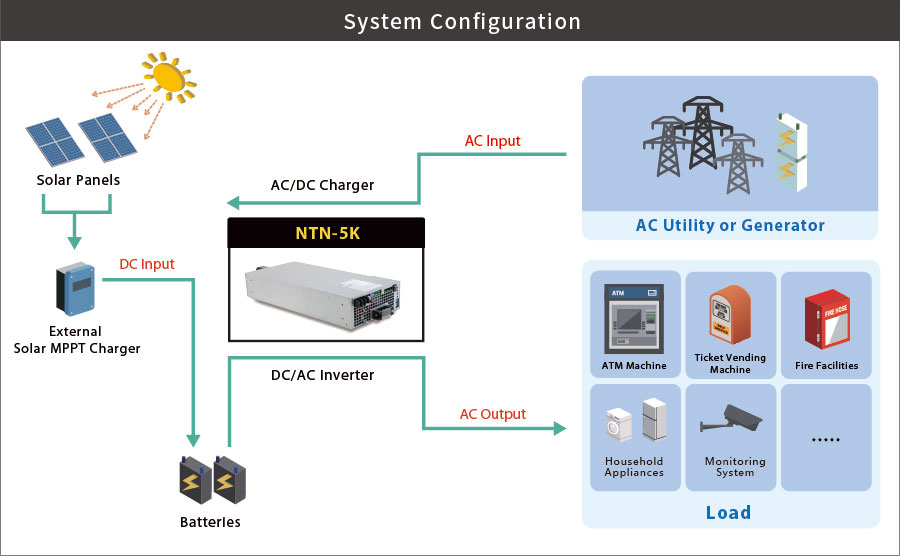

This series is an all-in-one unit that integrates AC-DC charging, DC-AC inversion, and AC bypass. It also supports external solar panels and MPPT chargers. The main features include five key highlights:
- Built-in high-power 4520W AC-DC charger with fast charging capability
- Adopts a modular design with 5KW single machine module, allowing flexible parallel connection of AC outputs up to 30KW (1+5 units), with highly flexible wattage expansion
- The chassis is designed in a 2U high cabinet style for easy installation and quick assembly when mounted in a standard 19" rack
- Uses 3 NTN-5K single-phase AC outputs, which can be combined for 3Ø4W AC output use
- Provides a comprehensive monitoring platform CMU2E, CM2E-R
In addition, MEAN WELL offers peripheral components such as batteries, 19-inch rack cabinets, fans, etc. This allows end-system designers to quickly build a small-scale energy storage uninterrupted power backup system, mobile charging, mobile power station, and more.
The NTN-5K offers the following features:
- Multi-functional All-in-One device (AC-DC Charger + DC-AC Inverter for Load + AC Bypass for Load)
- Built-in AC-DC high power charger up to 4520W
- DC-AC pure sine wave output (THD<3%)
- Instantaneous peak power of up to 10KW for AC output
- Up to 6 units of AC output can be paralleled, expanding wattage up to 30KW (5+1 units)
- Utilizes 3 NTN-5K unidirectional AC outputs, configurable for 3Ø4W usage
- -30～+70℃ ultra-wide temperature range, suitable for global deployment or installation in enclosed environments
- Built-in remote ON/OFF control
- Protections:
- DC input: Reverse Polarity, Low Voltage Warning and Shutdown, Over Voltage, Battery Over Discharge
- AC output: Short Circuit, Overload, Over Temperature
- Built-in Modbus or CAN bus communication monitoring
- Optional intelligent controllers available for purchase:
- CMU2E (Stand-Alone Vertical Mounting / Rail Mounting) or CMU2E-R (Rack System Installation)
- Dimensions (length x width x height): 460 x 211 x 83.5mm
- PCB coating for basic moisture / dust / dirt protection
- Certifications: CB / TUV / RCM / EAC / CE / UKCA / FCC
- Compatible with lead acid or lithium batteries
- 5 years warranty
