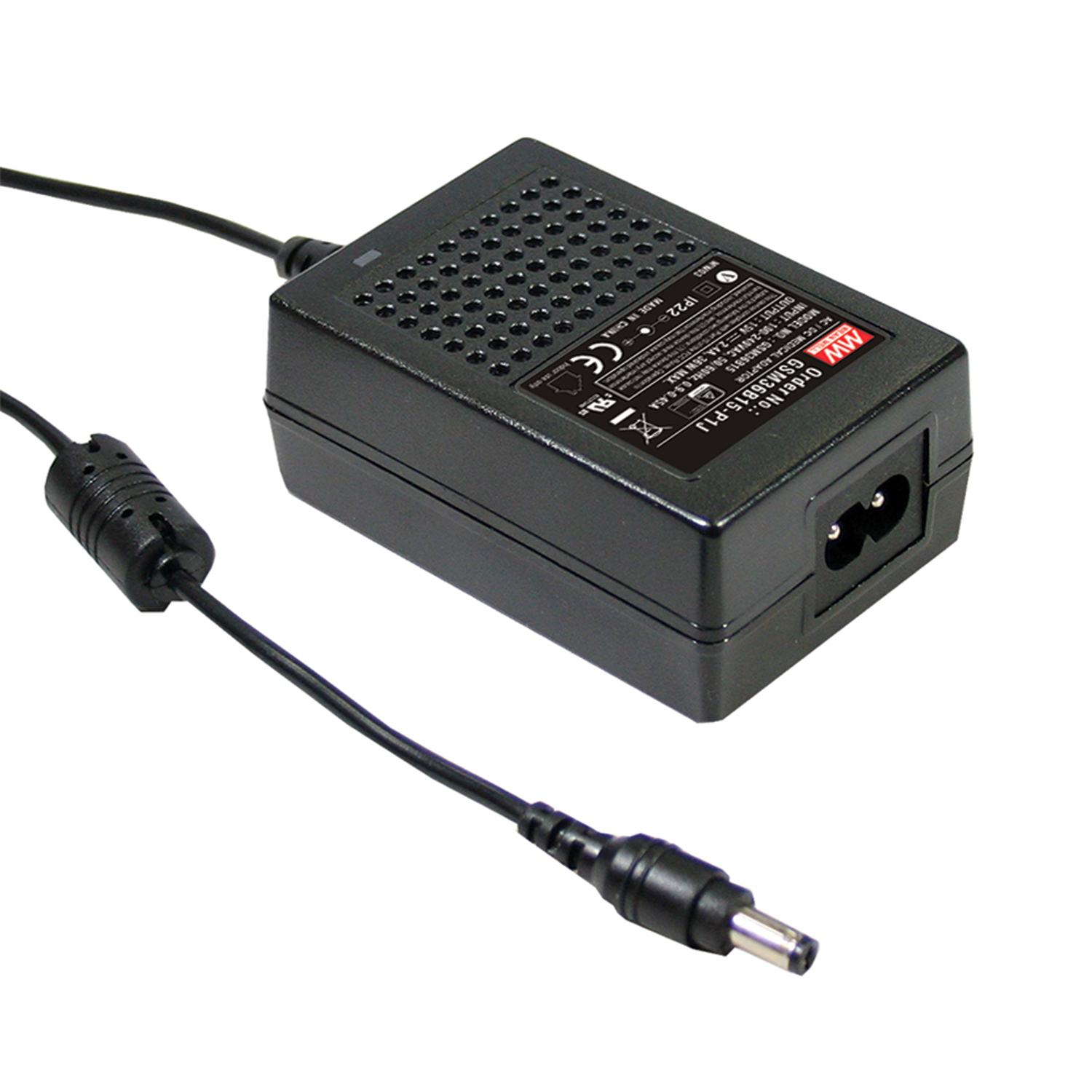

Mean Well GSM36B12-P1J
Article number:
GSM36B12-P1J
Article GTIN:
4711287430966
Downloads
AC-DC Medical desktop adaptor; Output 12VDC at 3A; Input 2 pin IEC320-C8 socket; EN60601 2xMOPP
Properties
- Series: GSM36B
- Brand: Mean Well
- Dimensions LxWxH (mm): 79x54x33 mm
- Warranty: 36 Months Bring-In
- Gross weight: 234
- Type: AC-DC
- Form factor: Adapter
- Mounting method: Wall mount
- Min. output voltages (V): 12
- Max. output voltage (V): 12
- Number of output voltages: 1
- Max output power (W): 36
- Input voltage (V): 80 - 264
- Min. input voltage: 80
- Max. input voltage (V): 264
- Max. output current (A): 3
- Number of output currents: 1
- IP rating: No IP assigned
- LED driver: No
- Dimming technologies: No Dimming
- Control signals: No control signals
- Carbon footprint (kgCO2e/pcs): 3.29
