Mean Well GSM60A24-P1J
Article number:
GSM60A24-P1J
Article GTIN:
4711287430607
Downloads

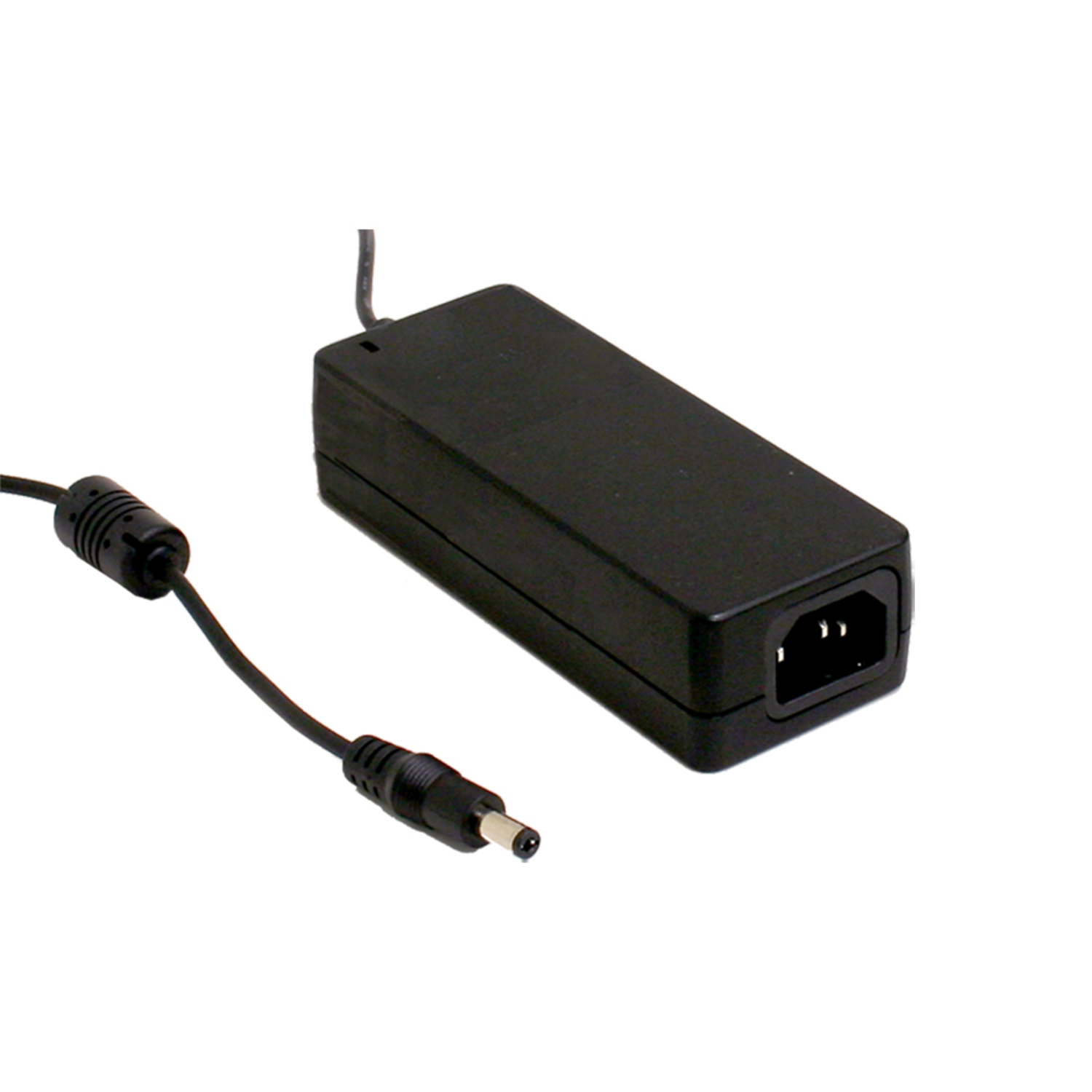

AC-DC Medical desktop adaptor with 3 pin IEC320-C14 input socket; Output 24VDC at 2.5A with P1J tuning fork plug OD 5.5mm; ID 2.1mm; Length 11mm; EN60601 2xMOPP; Class I
Properties
- Series: GSM60A
- Brand: Mean Well
- Dimensions LxWxH (mm): 170x85x50 mm
- Warranty: 12 Months Bring-In
- Gross weight: 310
- Type: AC-DC
- Form factor: Adapter
- Mounting method: Desktop
- Min. output voltages (V): 24
- Max. output voltage (V): 24
- Number of output voltages: 1
- Max output power (W): 60
- Input voltage (V): 80 - 264
- Min. input voltage: 80
- Max. input voltage (V): 264
- Max. output current (A): 2.5
- Number of output currents: 1
- IP rating: No IP assigned
- LED driver: No
- Dimming technologies: No Dimming
- Control signals: No control signals
- Carbon footprint (kgCO2e/pcs): 5.14
