Mean Well GST90A12-P1M

Article number:
GST90A12-P1M
Article GTIN:
4711287429205

Request a sample

Ask a product question

Downloads

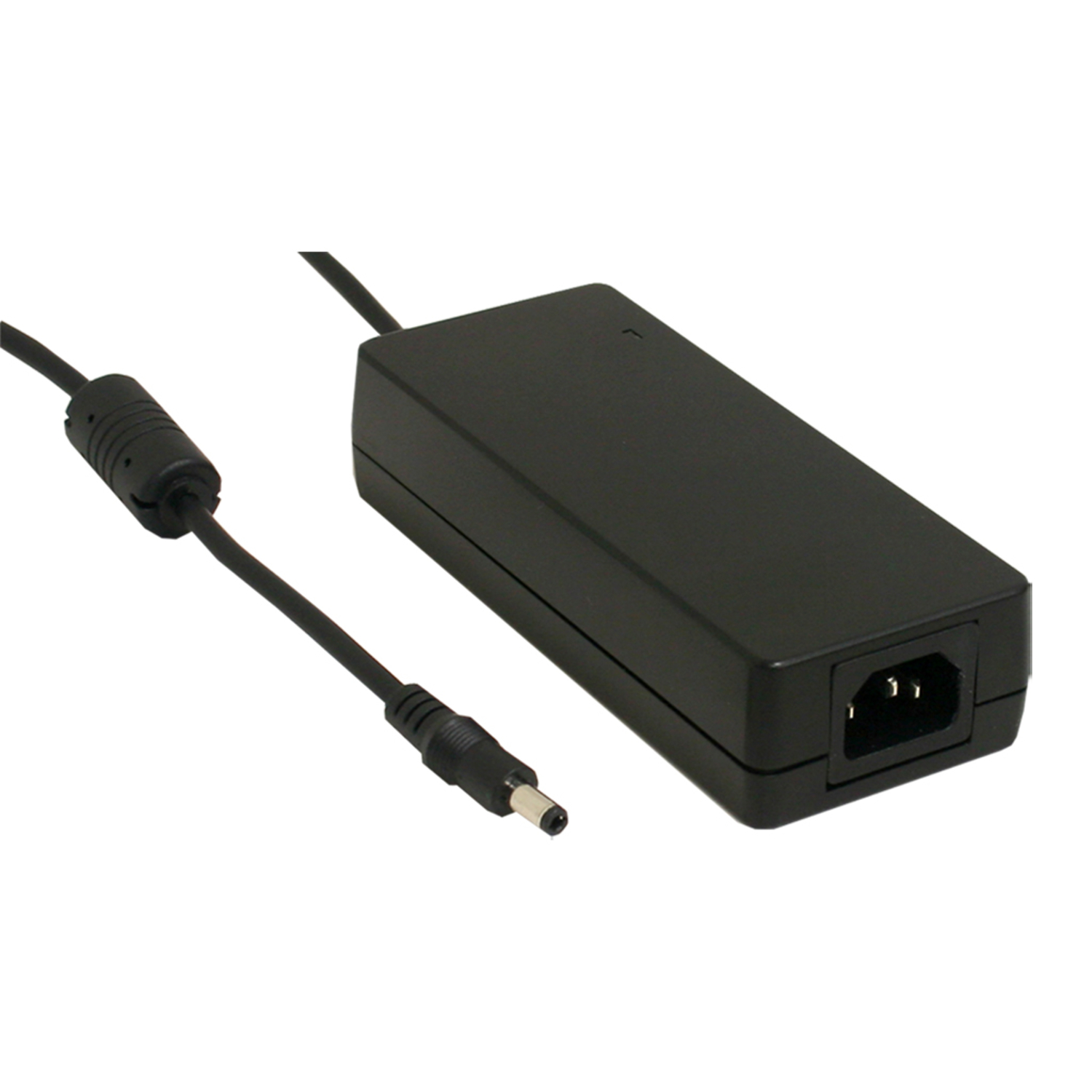

AC-DC Industrial desktop adaptor with PFC; Input 3 pin IEC320-C14 socket; Output 12VDC at 6.67A with P1M tuning fork plug OD 5.5mm; ID 2.5mm; Length 1000±50 mm

Properties

  • Series: GST90A
  • Brand: Mean Well
  • Dimensions LxWxH (mm): 195x94x40 mm
  • Warranty: 36 Months Bring-In
  • Gross weight: 430
  • Type: AC-DC
  • Form factor: Adapter
  • Mounting method: Desktop
  • Min. output voltages (V): 12
  • Max. output voltage (V): 12
  • Number of output voltages: 1
  • Max output power (W): 90
  • Input voltage (V): 90 - 264
  • Min. input voltage: 90
  • Max. input voltage (V): 264
  • Max. output current (A): 6.67
  • Number of output currents: 1
  • IP rating: No IP assigned
  • LED driver: No
  • Dimming technologies: No Dimming
  • Control signals: No control signals
  • Carbon footprint (kgCO2e/pcs): 7.06
