Mean Well HLG-480H-24AB

Article number:
HLG-480H-24AB
Article GTIN:
4711287451374

Request a sample

Ask a product question

Downloads

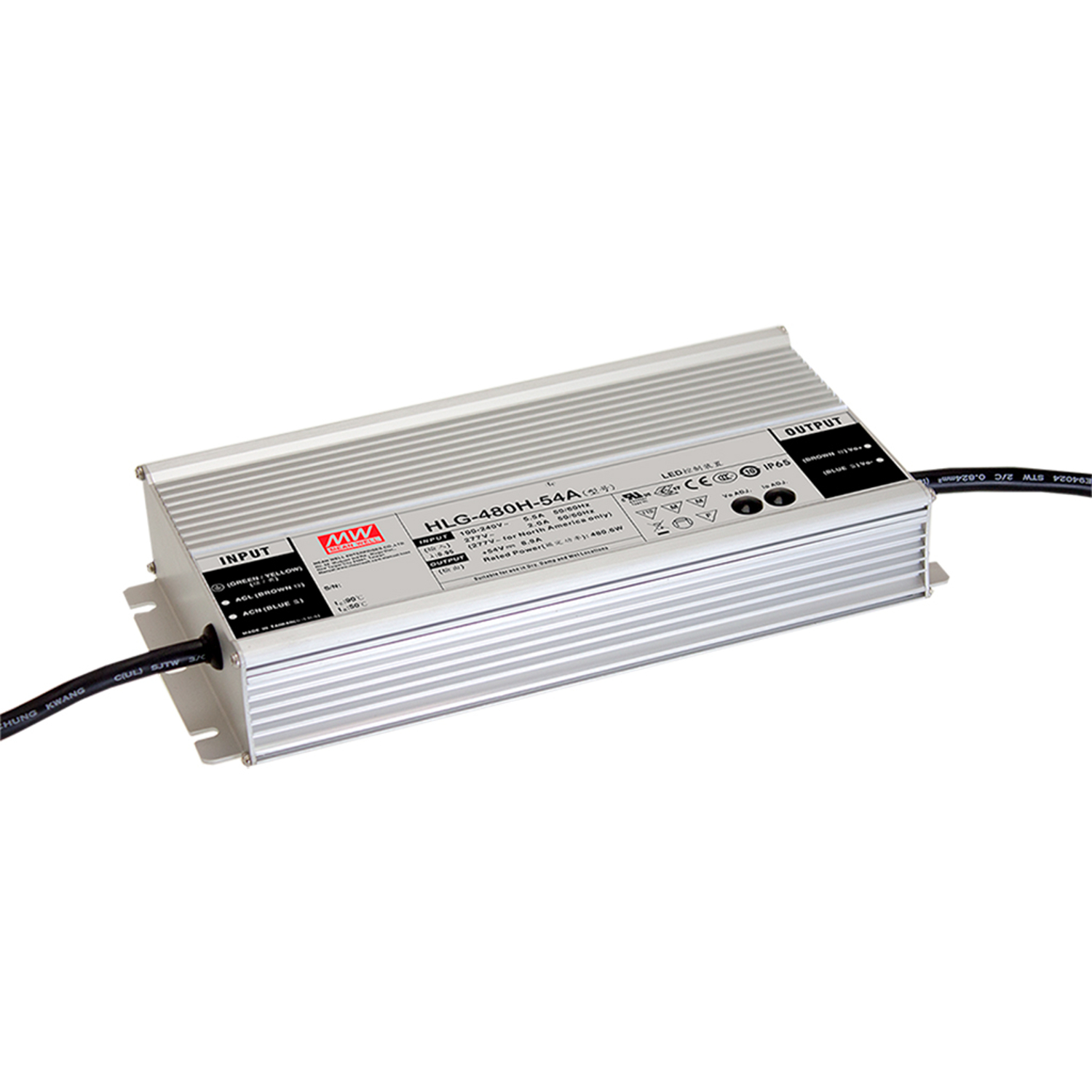

AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC; Output 24Vdc at 20A; IP65; Dimming with 0-10Vdc 10V PWM resistance; Io and Vo adjustable through built-in potentiometer

Properties

  • Series: HLG-480H
  • Brand: Mean Well
  • Dimensions LxWxH (mm): 262x125x43.5 mm
  • Warranty: 84 Months Bring-In
  • Gross weight: 2735
  • Type: AC-DC
  • Form factor: Enclosed
  • Mounting method: Chasis mount
  • Min. output voltages (V): 24
  • Max. output voltage (V): 24
  • Number of output voltages: 1
  • Max output power (W): 480
  • Input voltage (V): 90 - 305
  • Min. input voltage: 90
  • Max. input voltage (V): 305
  • Max. output current (A): 20
  • Number of output currents: 1
  • IP rating: IP65
  • LED driver: Yes
  • Dimming technologies: 0-10V, PWM, Resistance
  • Control signals: No control signals
  • Carbon footprint (kgCO2e/pcs): 29.4
