- Mean Well LPF-16D-24

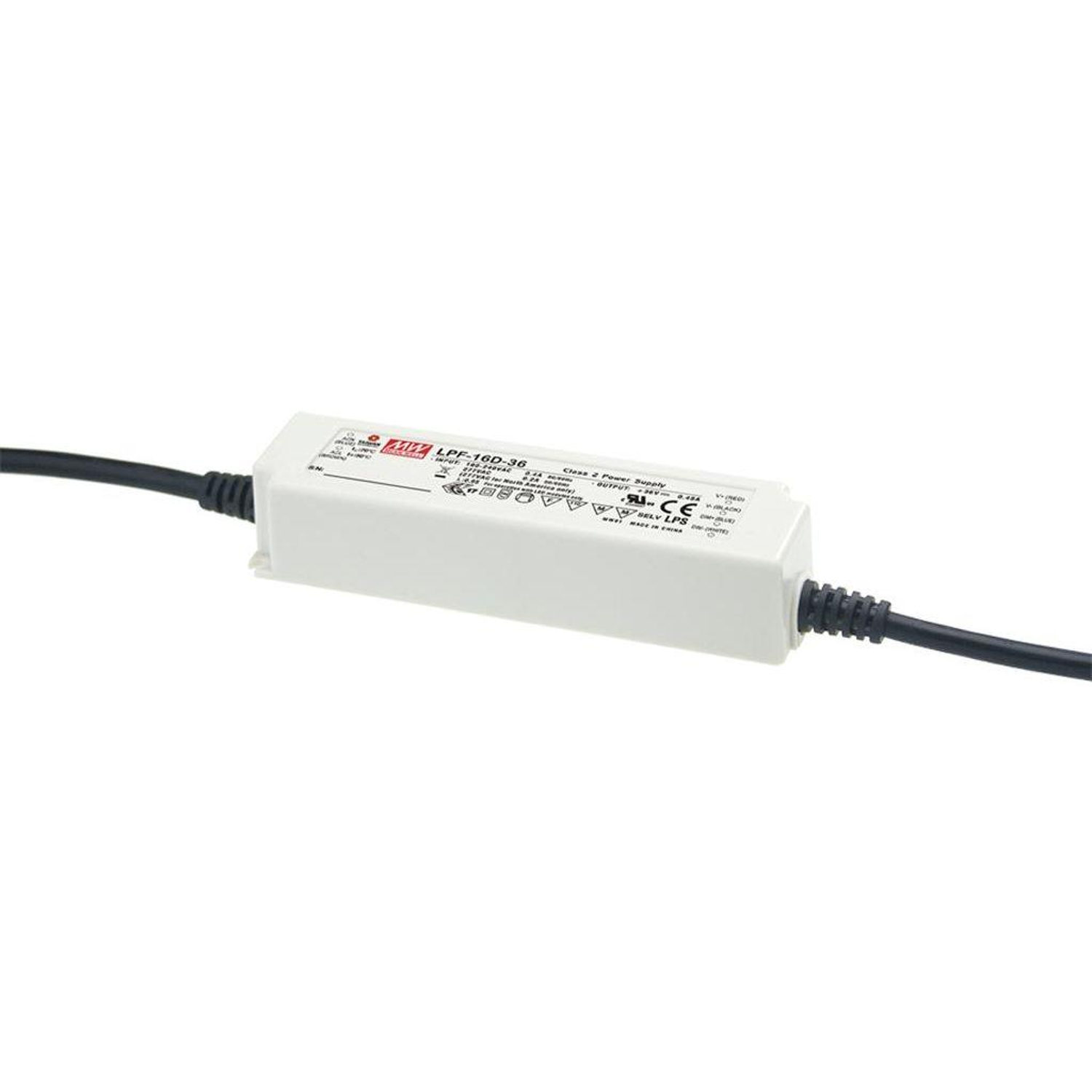

Mean Well LPF-16D-24
Article number:
LPF-16D-24
Article GTIN:
4711287440743
Downloads
AC-DC Single output LED driver Constant Current (CC); Output 24Vdc at 0.67A; cable output; Dimming
Properties
- Series: LPF-16D
- Brand: Mean Well
- Dimensions LxWxH (mm): 148x40x32 mm
- Warranty: 60 Months Bring-In
- Gross weight: 210
- Type: AC-DC
- Form factor: Enclosed
- Mounting method: Chasis mount
- Min. output voltages (V): 13.2
- Max. output voltage (V): 24
- Number of output voltages: 1
- Max output power (W): 16
- Input voltage (V): 90 - 305
- Min. input voltage: 90
- Max. input voltage (V): 305
- Max. output current (A): 0.67
- Number of output currents: 1
- IP rating: IP30
- LED driver: Yes
- Dimming technologies: 1-10V, PWM, Resistance
- Control signals: No control signal
