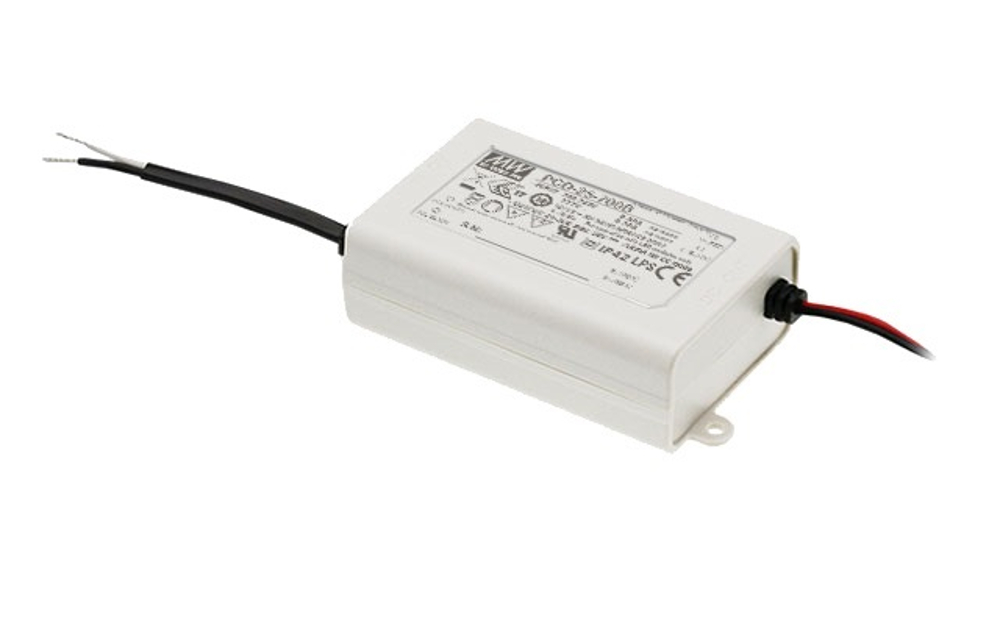

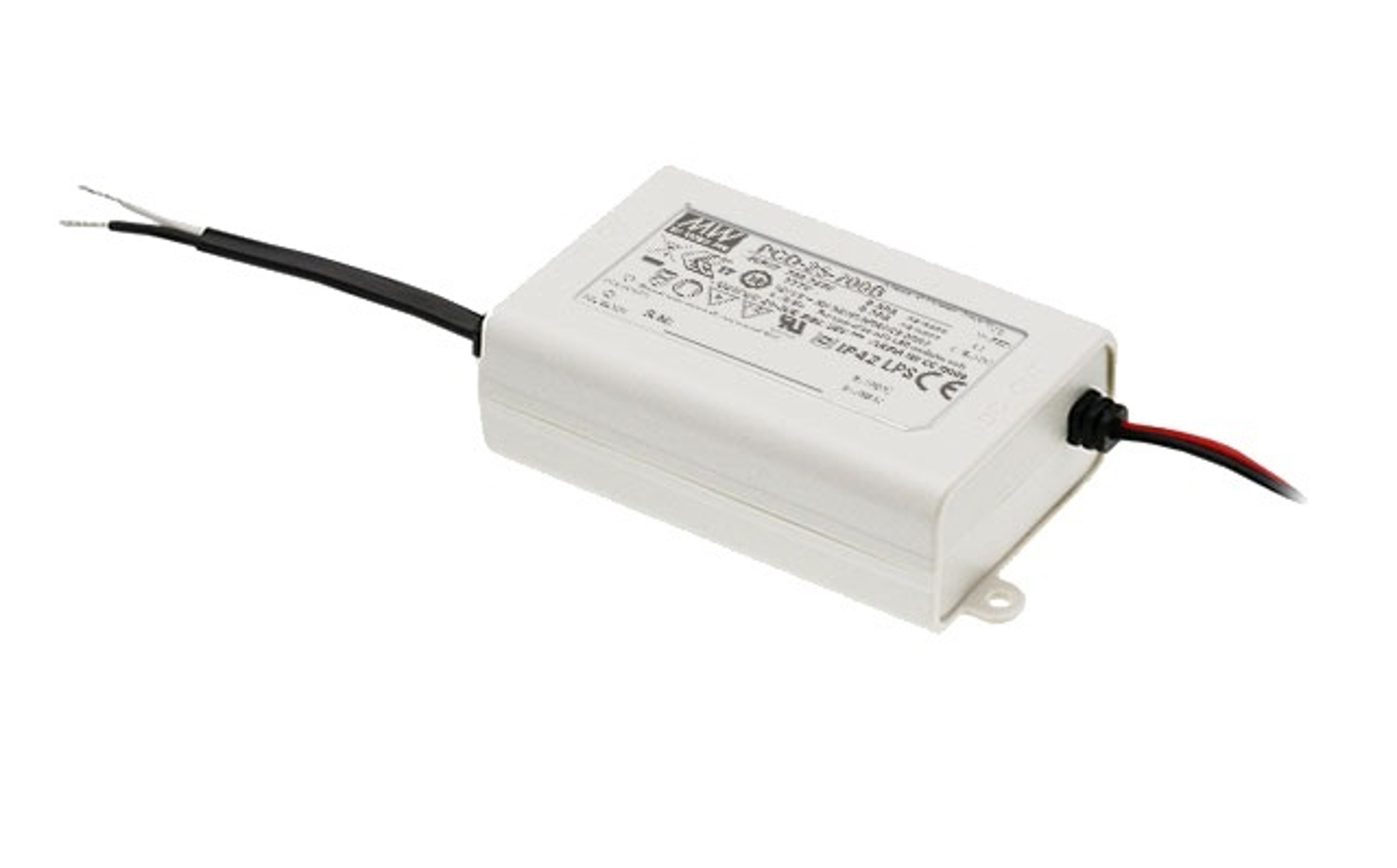

Mean Well PCD-25-700B
Article number:
PCD-25-700B
Article GTIN:
4711287439990
Downloads
AC-DC Single output LED driver Constant Current (CC); Output 0.7A at 24-36Vdc; AC phase-cut dimming
Properties
- Series: PCD-25
- Brand: Mean Well
- Dimensions LxWxH (mm): 84x57x29.5 mm
- Warranty: 36 Months Bring-In
- Gross weight: 180
- Type: AC-DC
- Form factor: Enclosed
- Mounting method: Chasis mount
- Min. output voltages (V): 24
- Max. output voltage (V): 36
- Number of output voltages: 1
- Max output power (W): 25
- Input voltage (V): 180 - 295
- Min. input voltage: 180
- Max. input voltage (V): 295
- Max. output current (A): 0.7
- Number of output currents: 1
- IP rating: IP42
- LED driver: Yes
- Dimming technologies: Triac
- Control signals: No control signal
- Carbon footprint (kgCO2e/pcs): 2.24
