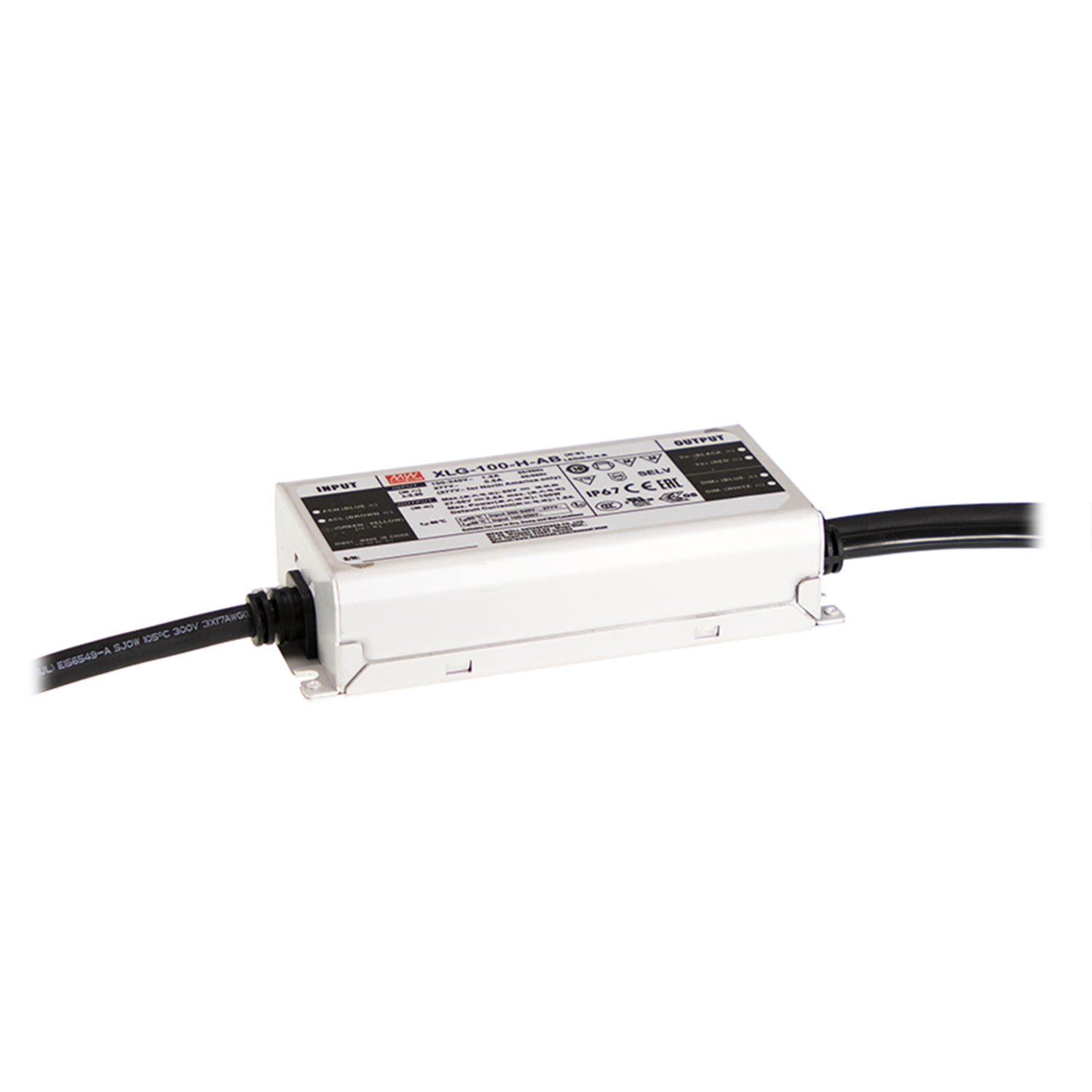

Mean Well XLG-100-24-A
Article number:
XLG-100-24-A
Article GTIN:
4711287456942
Downloads
AC-DC Single output LED driver Constant Power Mode with built-in PFC; Output 24Vdc at 4A; Metal housing design; IP67; Built-in potentiometer
Properties
- Series: XLG-100
- Brand: Mean Well
- Dimensions LxWxH (mm): 215x97x44 mm
- Warranty: 60 Months Bring-In
- Gross weight: 560
- Type: AC-DC
- Form factor: Enclosed
- Mounting method: Chasis mount
- Min. output voltages (V): 24
- Max. output voltage (V): 24
- Number of output voltages: 1
- Max output power (W): 100
- Input voltage (V): 100 - 305
- Min. input voltage: 100
- Max. input voltage (V): 305
- Max. output current (A): 4
- Number of output currents: 1
- IP rating: IP67
- LED driver: Yes
- Dimming technologies: Potentiometer
- Control signals: No control signals
- Carbon footprint (kgCO2e/pcs): 4.71
